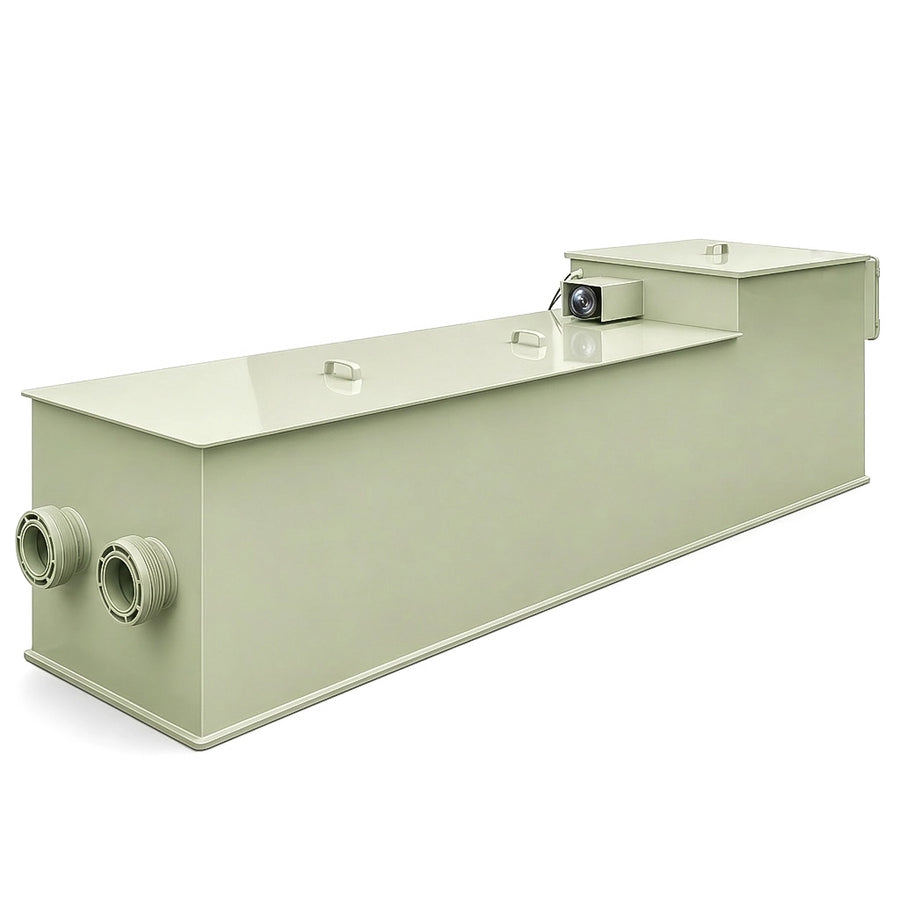

BTS50 Automatic Drum Micro Filter Pond Filtration System | 13,450 GPH / 12,000-Gallon (50-Ton) Capacity | Self-Cleaning, Dual UV40W Sterilizer & Biochemical Filter Media – Commercial Koi Pond & Aquaculture Water Filter

The BTS50 Automatic Drum Micro Filter is a heavy-duty, commercial-grade pond filtration system engineered for large koi ponds, professional aquaculture farms, and high-volume freshwater systems up to 12,000 gallons (50 tons). At the top of the BTS product line, it delivers industrial-scale mechanical micro-filtration, biochemical biological filtration, and dual UV40W sterilization, all in one fully integrated, self-maintaining unit capable of processing 13,450 GPH continuously.

Powered by a 370W high-capacity pump and a 120W motor, the BTS50 handles the most demanding large-volume water treatment needs with ease. Its 316 food-grade stainless steel drum filter screen intercepts suspended particles ≥50 μm, including fish waste, organic debris, fine sediment, and algae, across dual DN100 (4-inch) inlets for maximum throughput. When the filter screen reaches capacity, the intelligent automatic water-level control system triggers a simultaneous high-pressure backwash cycle: the drum rotates while pressurized nozzles flush all accumulated impurities directly to the DN65 sewage outlet, 100% hands-free.

Dual UV40W sterilization lamps deliver twice the pathogen-neutralizing power compared to single-lamp systems, making the BTS50 the ideal choice for high-density koi environments or commercial aquaculture operations where water quality directly impacts livestock health and yield.

Constructed from food-grade PP material rated for 10+ years of outdoor use, it withstands continuous exposure to UV, heat, rain, and corrosion without performance degradation. The large-capacity biochemical filtration chamber rapidly cultivates nitrifying bacteria colonies, establishing a robust, self-sustaining biological filtration cycle for consistent, long-term water clarity.

Key Features:
• Automatic self-cleaning drum filter, intelligent water-level triggered backwash
• 316 stainless steel micro-filter screen, captures particles ≥50 μm
• Dual UV40W sterilization, double pathogen, algae & bacteria elimination power
• Large biochemical filtration chamber, sustains stable nitrification cycle
• Dual DN100 (4-inch) inlets, maximizes flow throughput at 13,450 GPH
• Inclined-bottom design, no dead zones, zero blockages, complete drainage
• Food-grade PP construction, 10+ year outdoor lifespan, weather & corrosion resistant
• 370W high-capacity pump, built for continuous commercial-scale operation
• Ideal for large koi ponds, commercial aquaculture farms & industrial freshwater systems

Specifications:
• Pond Capacity: Up to 12,000 Gallons (50 Tons)
• Flow Rate: 13,450 GPH
• Overall Size: 2337 × 568 × 906 mm (92" × 22.36" × 35.66")
• Water Inlet: DN100 (4 inches) × 2 | Outlet: DN100 (4 inches) × 2
• Sewage Outlet: DN65 (2.5 inches)
• Motor Power: 120W | Pump Power: 370W
• Biochemical Chamber: 604 × 309 × 283 mm (23.77" × 12.16" × 11.14")
• UV Sterilizer: 40W × 2
• Filter Particle Size: ≥50 μm
• Material: Food-grade PP + 316 Stainless Steel Screen

In the Box:
• 1× BTS50 (50-Ton) Automatic Drum Pond Filter Unit (with filter bin + UV40W ×2)

Safety & Maintenance Notes:
• Never run the water pump dry, always ensure water flow before starting
• Stop the pump fully before adjusting any valve settings
• Regularly inspect nozzles for blockage; clean or replace promptly as needed
• Protect all electrical components from water overflow or splash at all times
• Follow pump operation manual guidelines for daily maintenance procedures
• Never disconnect pump fittings or unions while the pump is running
